AC13-21-11.00

Electrical

Standard UL IEC
Rated Voltage 300 V 450 V
Rated Current 30 A 32 A
Wire Range 22 ~ 10 AWG 4 mm²
Contact Resistance 20 mΩ
Insulation resistance 500MΩ / DC500V
Withstanding voltage AC2000V / 1Min

Other Data

Insulation Material PA66, UL94V-0
Conductor Material Copper alloy, Sn plated
Pitch / Poles 11.00 mm / 2 ~ 4 poles
Screw / Torque M4.0 Steel Au plated / 1.2 N.m
Operating Temperature -40 ~ +105 ℃

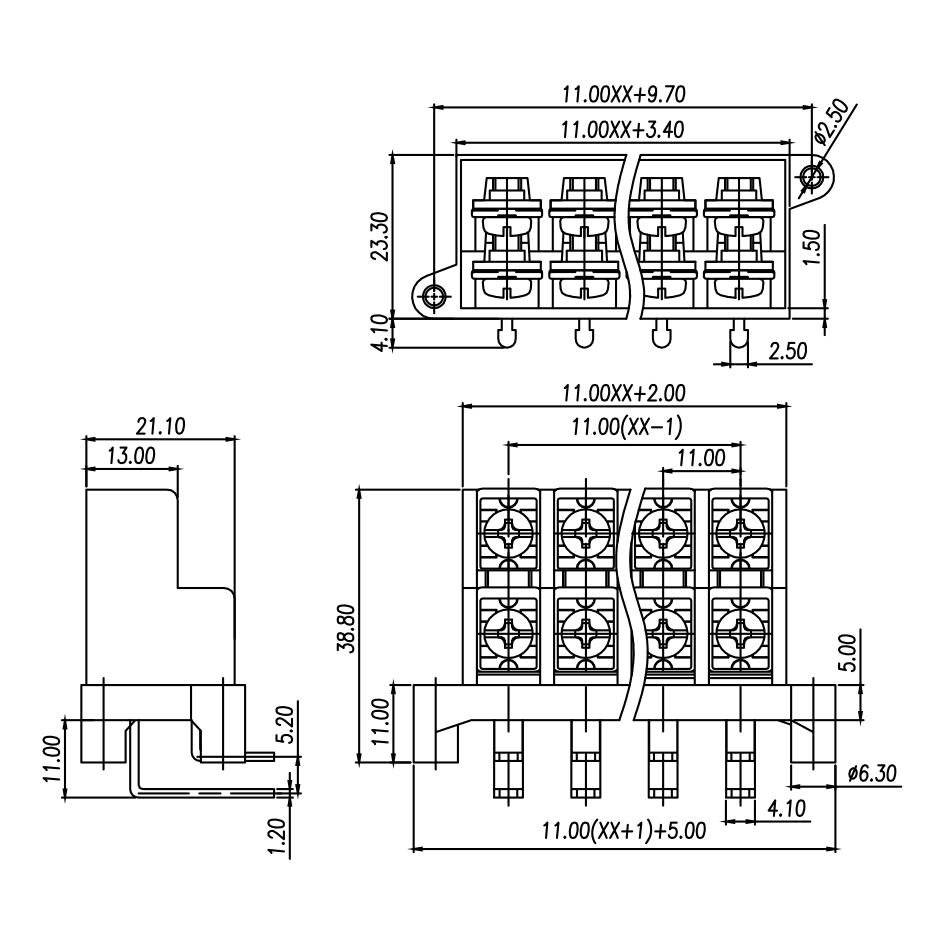

Dimensions
