AC118M-15.00
UL/CUL
| Use Group | B | C | D |
|---|---|---|---|
| Rated Voltage | 600 V | 600 V | 600 V |
| Rated Current | 115 A | 115 A | 5 A |
| Wire Range | 20 ~ 2 AWG | ||
| Dielectric Voltage-Withstand | 2.2 KV | ||
IEC
| Overvoltage Category | III | III | II |
|---|---|---|---|
| Contamination Class | 3 | 2 | 2 |
| Rated Voltage | 1000 V | 1000 V | 1000 V |
| Rated Current | 125 A | 125 A | 125 A |
| Impulse Withstand Voltage | 8 KV | 8 KV | 8 KV |
| Conductor Cross Section (Solid) | 0.5 ~ 35.0 mm² | ||
| Conductor Cross Section (Flexible) | 0.5 ~ 35.0 mm² | ||
Material
| Insulation Material | PA66 | ||
| Flammability Rating | UL94V-0 | ||
| Conductor Material | Copper alloy | ||
| Contact Surface Plating | Sn plated | ||
Other Data
| Pitch / Poles | 15.00 mm / 2 ~ 10 poles | ||
| Stripping Length | 17 ~ 18 mm | ||
| Screw / Torque | M5.0 / 2 N.m | ||
| Operating Temperature | -40 ~ +105 ℃ | ||
| Soldering Temperature | 260℃ / 5S | ||
| Pin Dimensions | 1.2 * 1.2 mm | ||
| PCB Hole Diameter | ⌀2 mm | ||

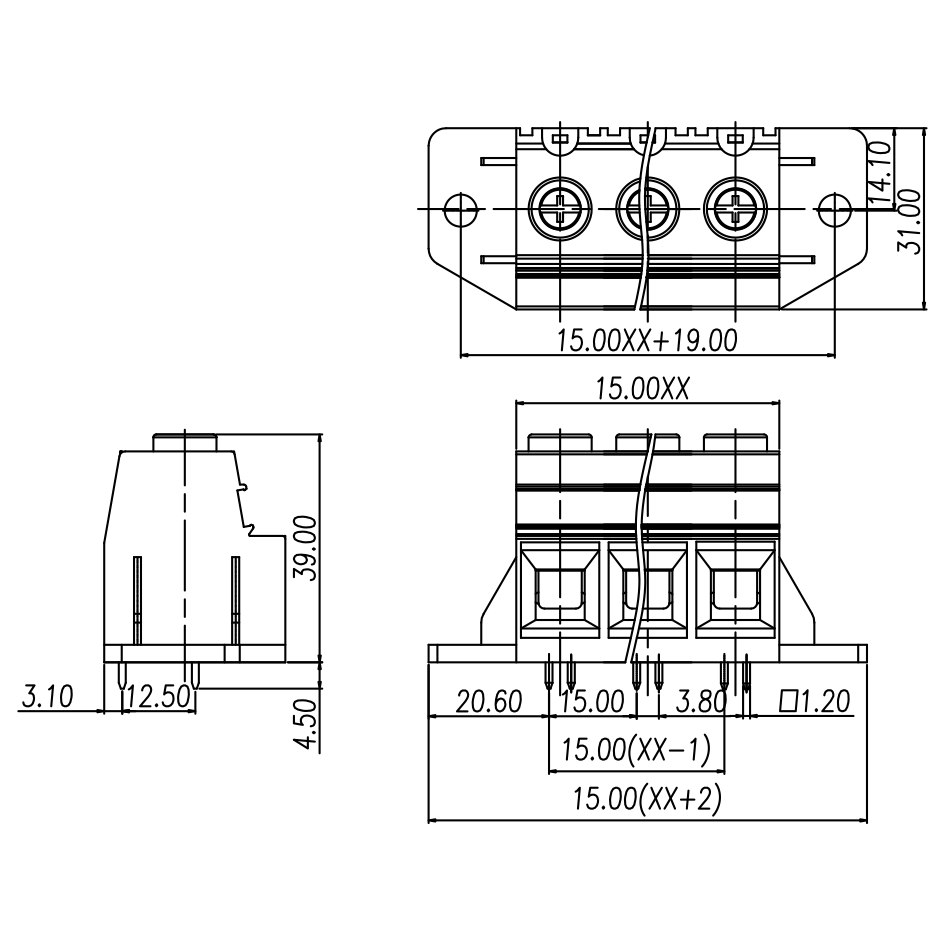

Dimensions

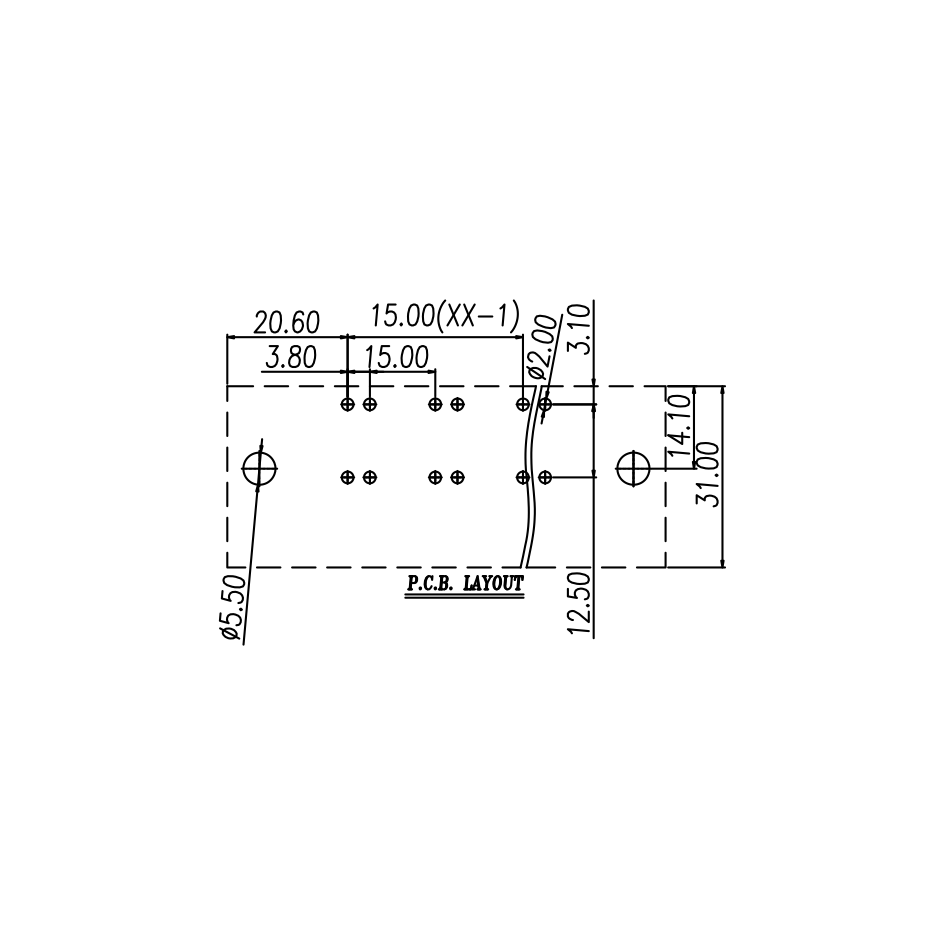

PCB Opening diagram
