AC15D-9.00
Electrical
| Standard | UL | IEC |
|---|---|---|
| Rated Voltage | 300 V | - |
| Rated Current | 20 A | - |
| Wire Range | 22 ~ 12 AWG | - |
| Contact Resistance | 20 mΩ | |
| Insulation resistance | 500MΩ / DC500V | |
| Withstanding voltage | AC1600V / 1Min | |
Other Data
| Insulation Material | PBT, UL94V-0 | |
| Conductor Material | Copper alloy, Ni plated | |
| Pitch / Poles | 9.00 mm / 3, 12 poles | |
| Screw / Torque | M3.5 Steel Ni plated / 0.8 N.m | |
| Operating Temperature | -30 ~ +120 ℃ | |

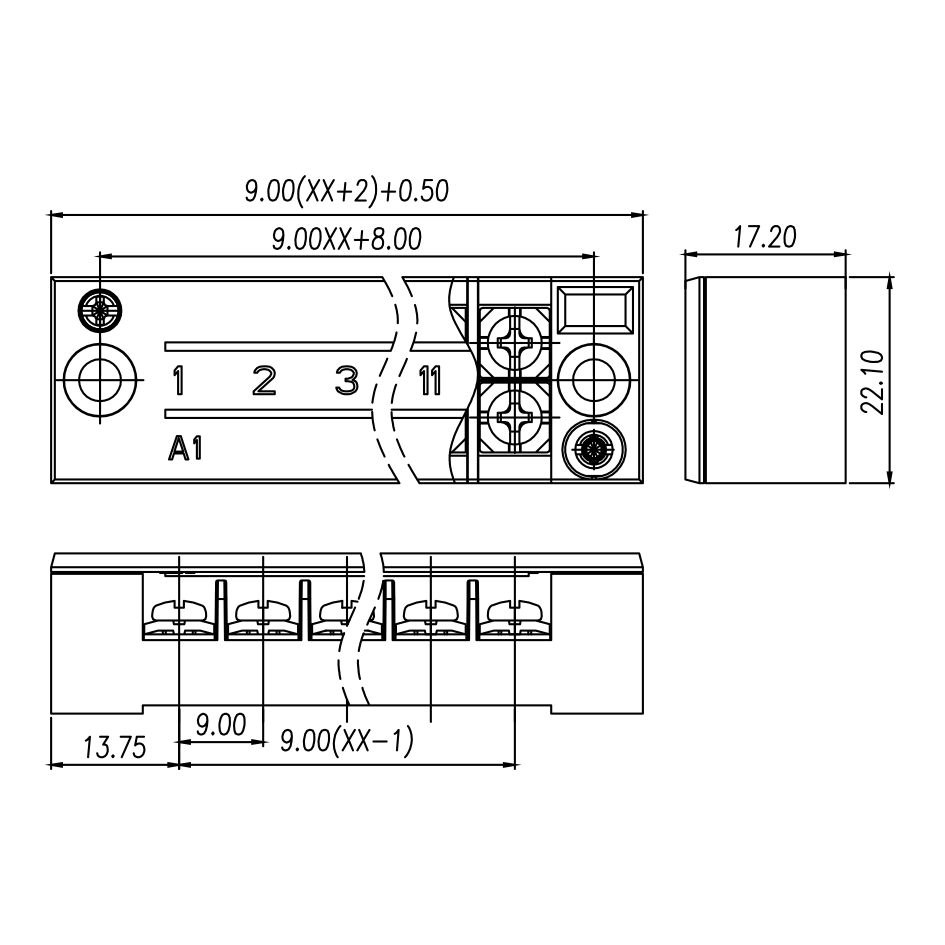

Dimensions
