AC14-2-8.50

Electrical

Standard UL IEC
Rated Voltage 300 V 250 V
Rated Current 15 A 17.5 A
Wire Range 22 ~ 14 AWG 1.5 mm²
Contact Resistance 20 mΩ
Insulation resistance 500MΩ / DC500V
Withstanding voltage AC2000V / 1Min

Other Data

Insulation Material PA66, UL94V-0
Conductor Material Copper alloy, Sn plated
Pitch / Poles 8.50 mm / 2 ~ 25 poles
Screw / Torque M3.0 Steel Ni plated / 0.5 N.m
Operating Temperature -40 ~ +105 ℃

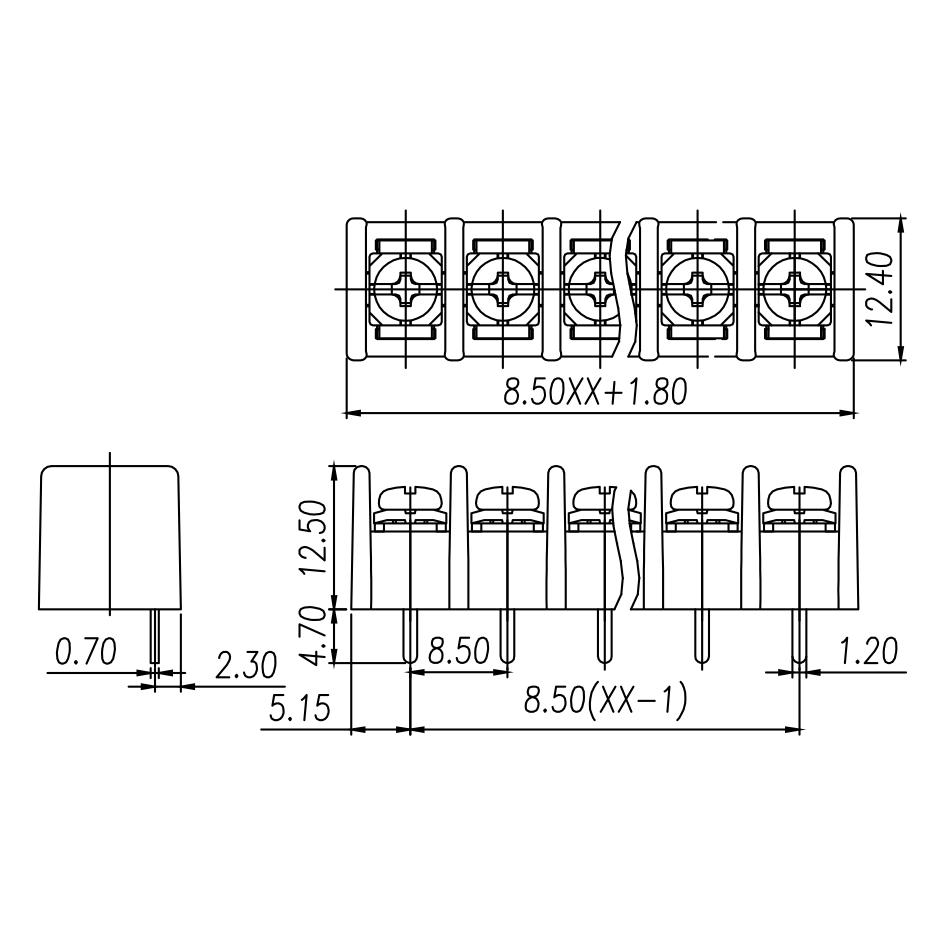

Dimensions

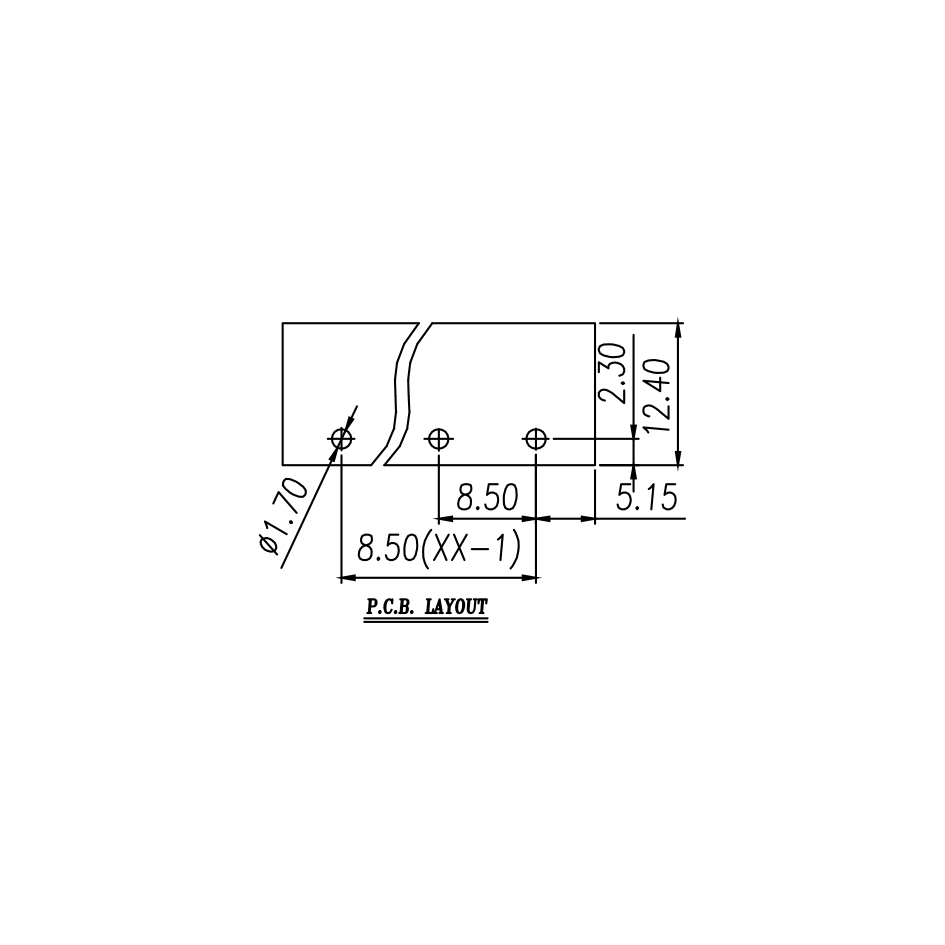

PCB Opening diagram
