AC10L-16.00

Electrical

Standard UL IEC
Rated Voltage 600 V -
Rated Current 65 A -
Wire Range 14 ~ 6 AWG -
Contact Resistance 20 mΩ
Insulation resistance 1000MΩ / DC500V
Withstanding voltage AC2500V / 1Min

Other Data

Insulation Material PBT, UL94V-0
Conductor Material Copper alloy, Sn plated
Pitch / Poles 16.00 mm / 1 ~ 15 poles
Screw / Torque M5.0 Steel Zn plated / 2.5 N.m
Operating Temperature -40 ~ +130 ℃

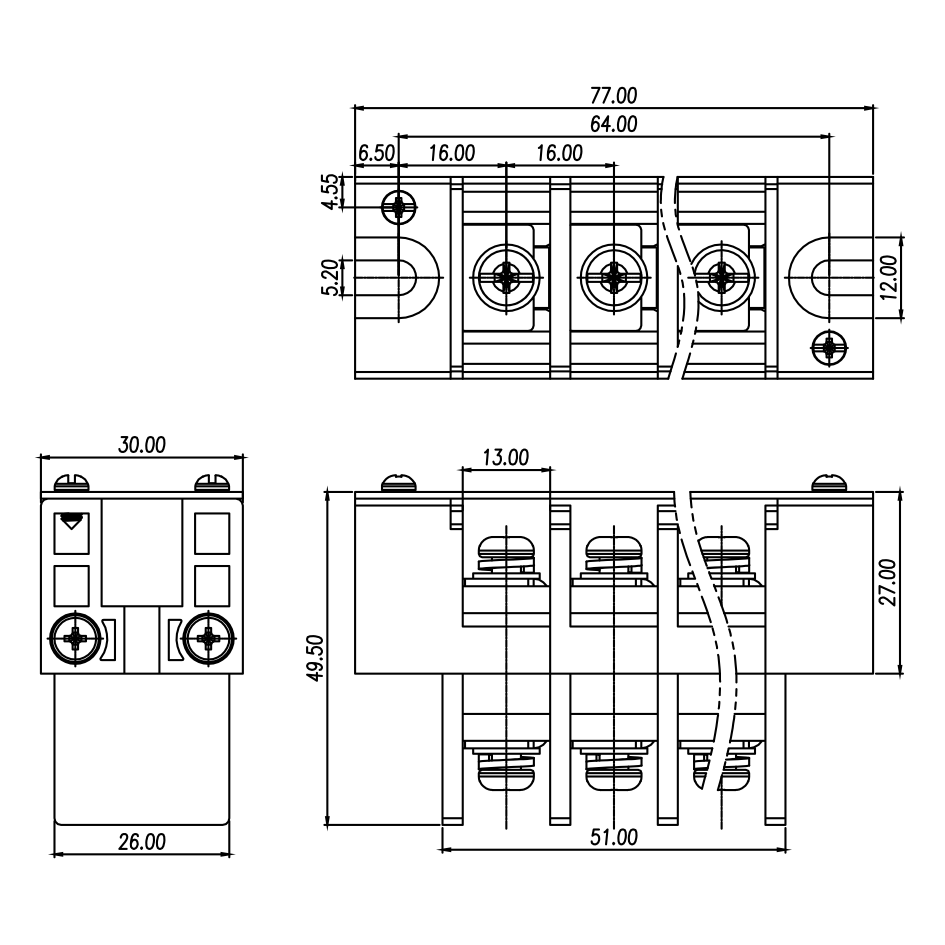

Dimensions

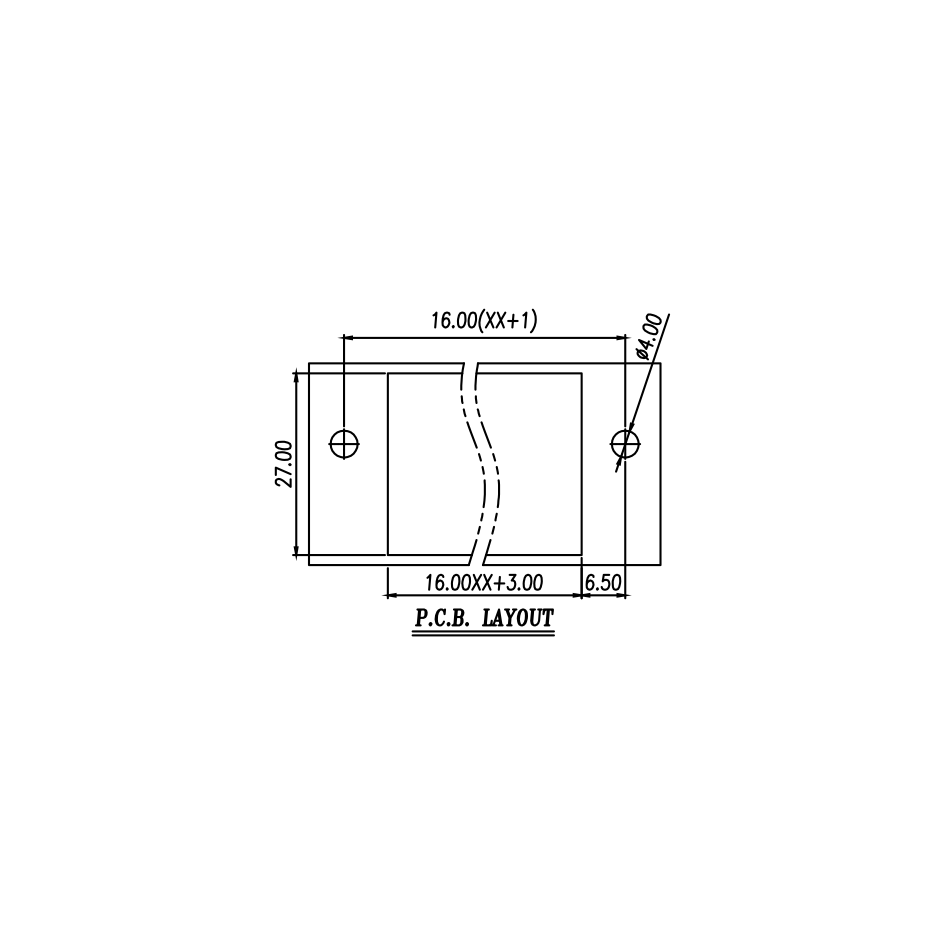

PCB Opening diagram
