AC117-12.70

UL/CUL

Use Group B C D
Rated Voltage 600 V 600 V 600 V
Rated Current 65 A 65 A 5 A
Wire Range 20 ~ 6 AWG
Dielectric Voltage-Withstand 2.2 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 1000 V 1000 V 1000 V
Rated Current 57 A 57 A 57 A
Impulse Withstand Voltage 8 KV 8 KV 8 KV
Conductor Cross Section (Solid) 2.5 ~ 16.0 mm²
Conductor Cross Section (Flexible) 2.5 ~ 16.0 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 12.70 mm / 2 ~ 16 poles
Stripping Length 11 ~ 12 mm
Screw / Torque M4.0 / 1.2 N.m
Operating Temperature -40 ~ +105 ℃
Soldering Temperature 260℃ / 5S
Pin Dimensions 1.0 * 1.0 mm
PCB Hole Diameter ⌀1.7 mm

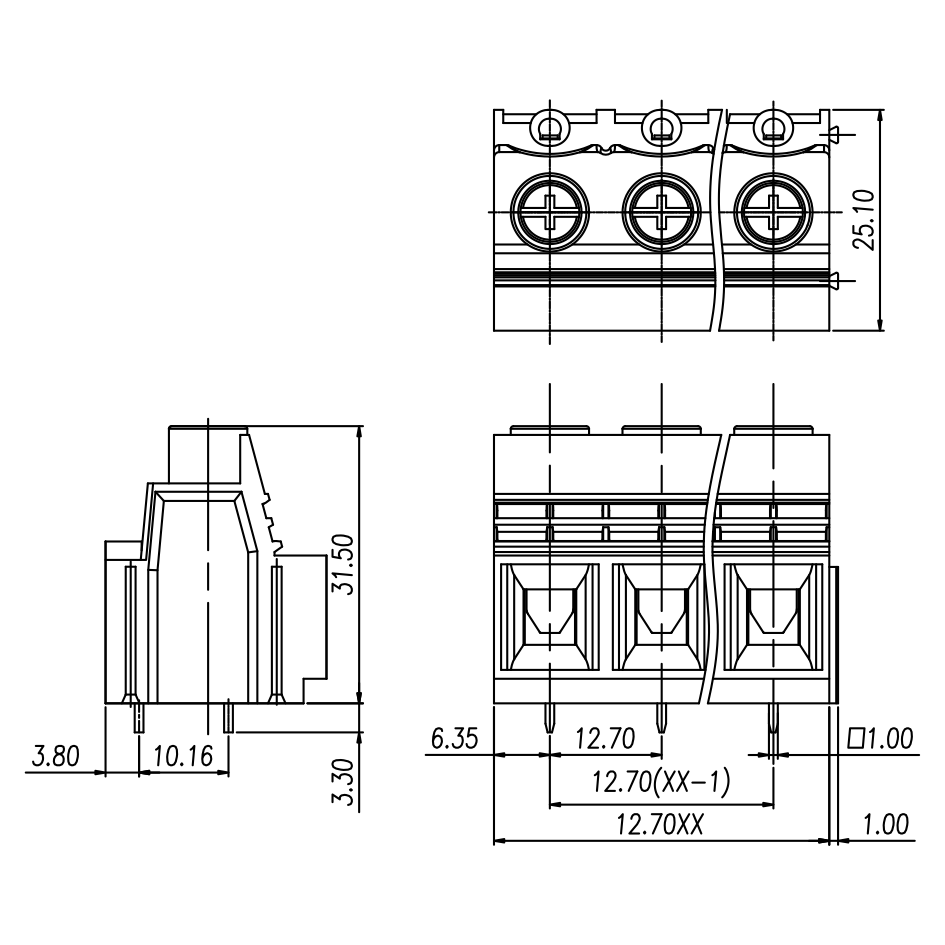

Dimensions

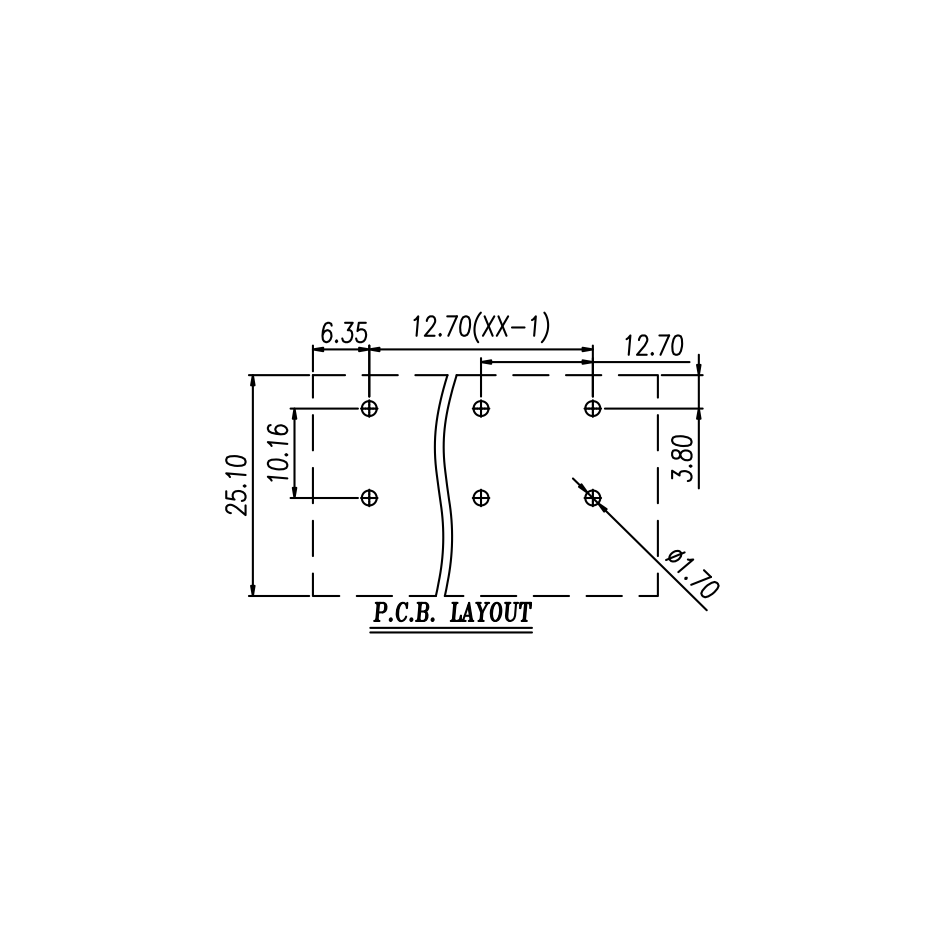

PCB Opening diagram
