AC636-6.35

UL/CUL

Use Group B C D
Rated Voltage 300 V - 300 V
Rated Current 30 A - 10 A
Wire Range 26 ~ 10 AWG
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 400 V 630 V 1000 V
Rated Current 32 A 32 A 32 A
Impulse Withstand Voltage 6 KV 6 KV 6 KV
Conductor Cross Section (Solid) 0.5 ~ 4.0 mm²
Conductor Cross Section (Flexible) 0.5 ~ 4.0 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 6.35 mm / 2 ~ 24 poles
Stripping Length 7 ~ 8 mm
Screw / Torque M3.0 / 0.5 N.m
Operating Temperature -40 ~ +105 ℃
Soldering Temperature 260℃ / 5S
Pin Dimensions 0.8 * 1.0 mm
PCB Hole Diameter ⌀1.5 mm

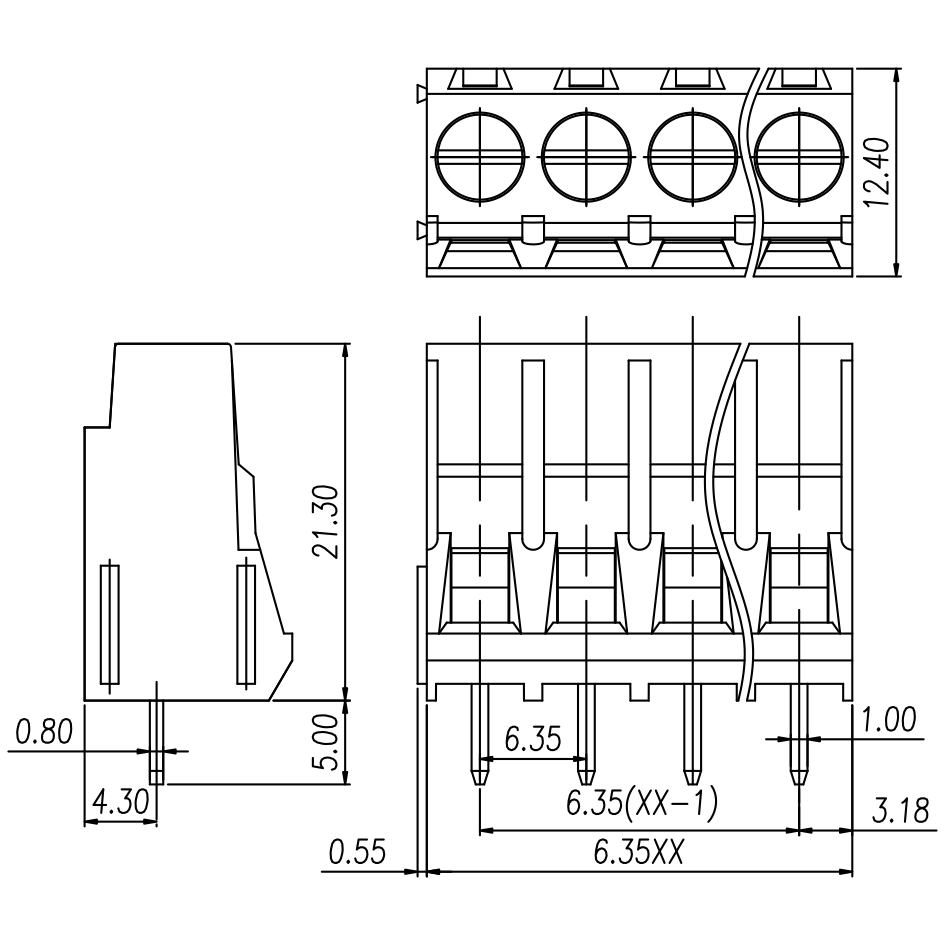

Dimensions

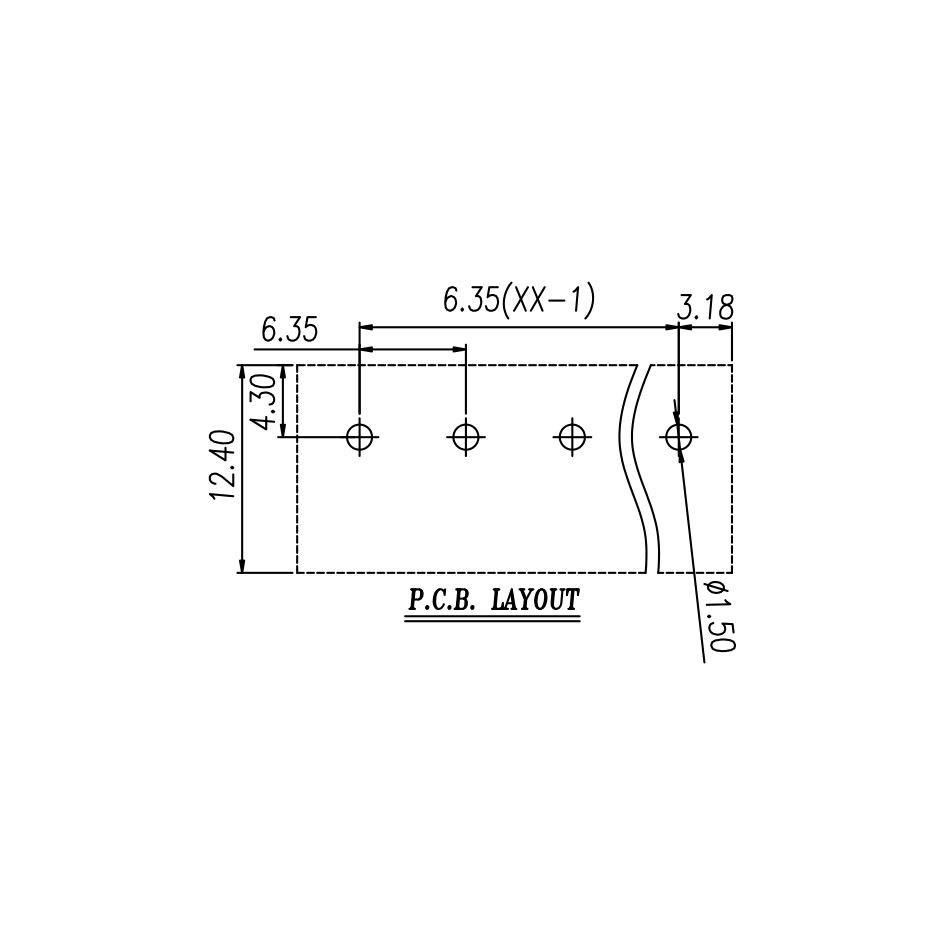

PCB Opening diagram
