AC55CM-10.00
Electrical
| Standard | UL | IEC |
|---|---|---|
| Rated Voltage | 300 V | 400 V |
| Rated Current | 20 A | 24 A |
| Wire Range | 22 ~ 12 AWG | 2.5 mm² |
| Contact Resistance | 20 mΩ | |
| Insulation resistance | 500MΩ / DC500V | |
| Withstanding voltage | AC2000V / 1Min | |
Other Data
| Insulation Material | PA66, UL94V-0 | |
| Conductor Material | Copper alloy, Sn plated | |
| Pitch / Poles | 10.00 mm / 2 ~ 22 poles | |
| Screw / Torque | M4.0 Steel Ni plated / 1.2 N.m | |
| Operating Temperature | -40 ~ +105 ℃ | |

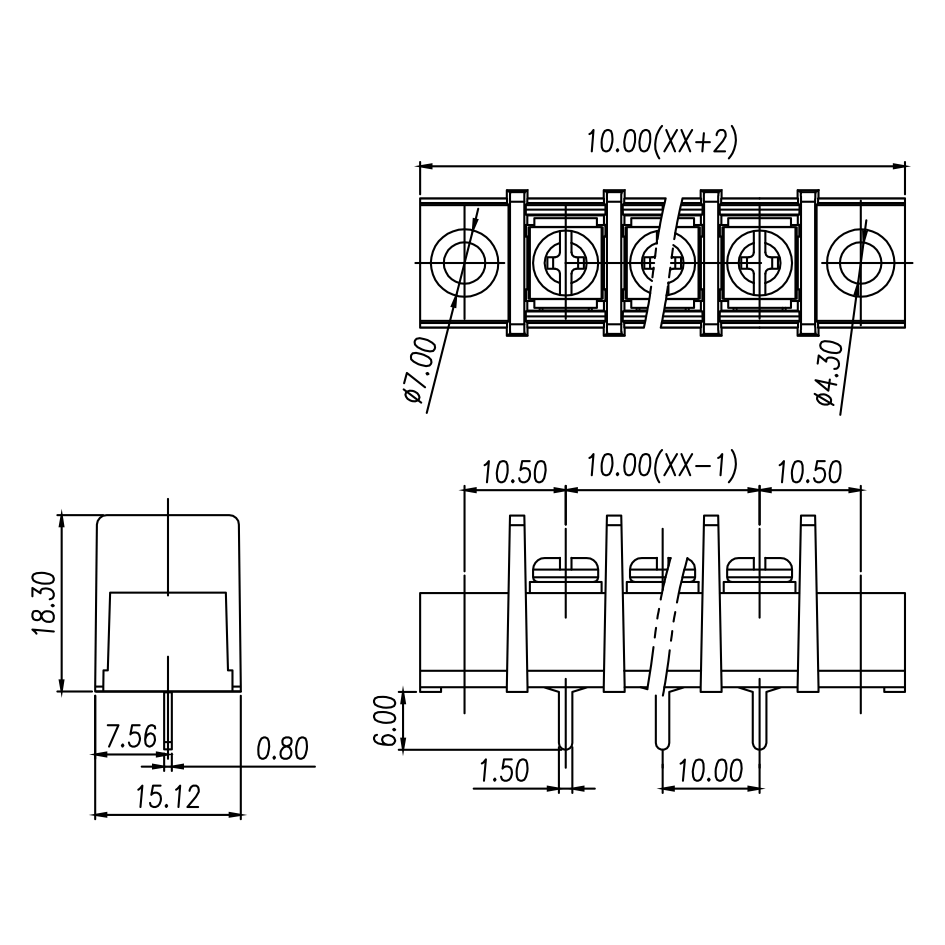

Dimensions

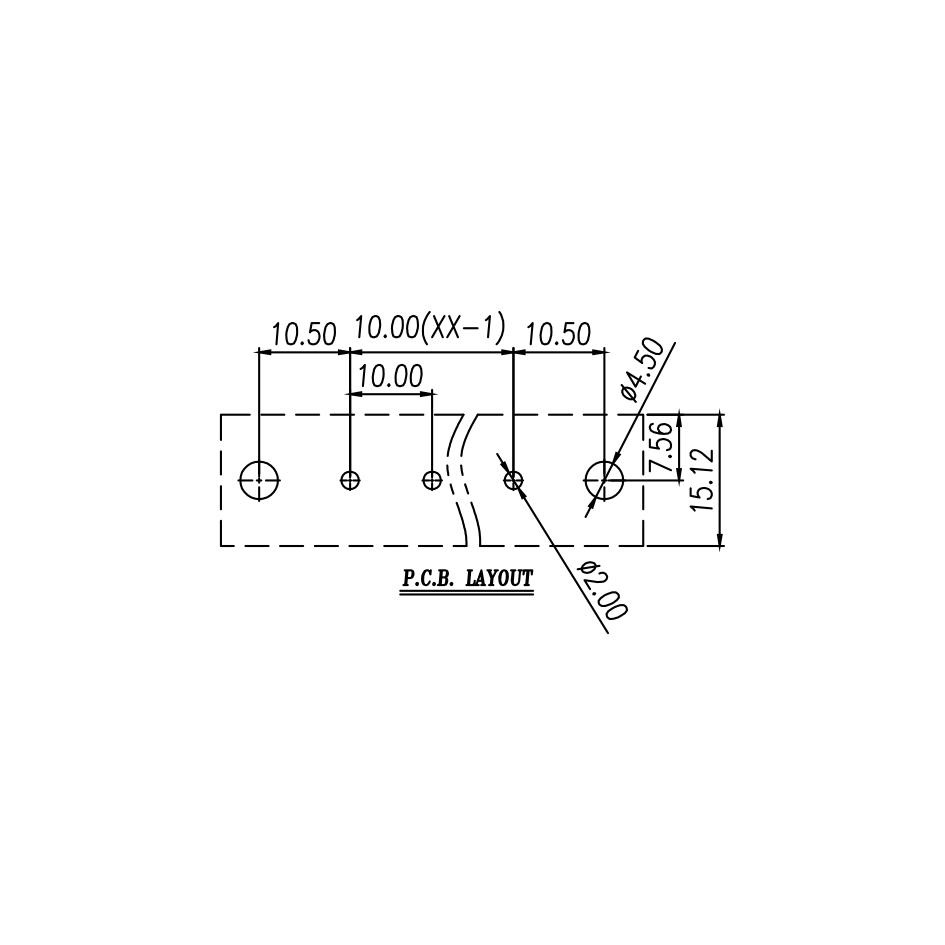

PCB Opening diagram
