AC12HW-12.00
Electrical
| Standard | UL | IEC |
|---|---|---|
| Rated Voltage | 600 V | 750 V |
| Rated Current | 50 A | 41 A |
| Wire Range | 20 ~ 8 AWG | 6 mm² |
| Contact Resistance | 20 mΩ | |
| Insulation resistance | 500MΩ / DC500V | |
| Withstanding voltage | AC2200V / 1Min | |
Other Data
| Insulation Material | PA66, UL94V-2 | |
| Conductor Material | Copper alloy, Ni plated | |
| Pitch | 12.00 mm | |
| Screw / Torque | M3.5 Steel Zn plated / 0.8 N.m | |
| Operating Temperature | -40 ~ +105 ℃ | |

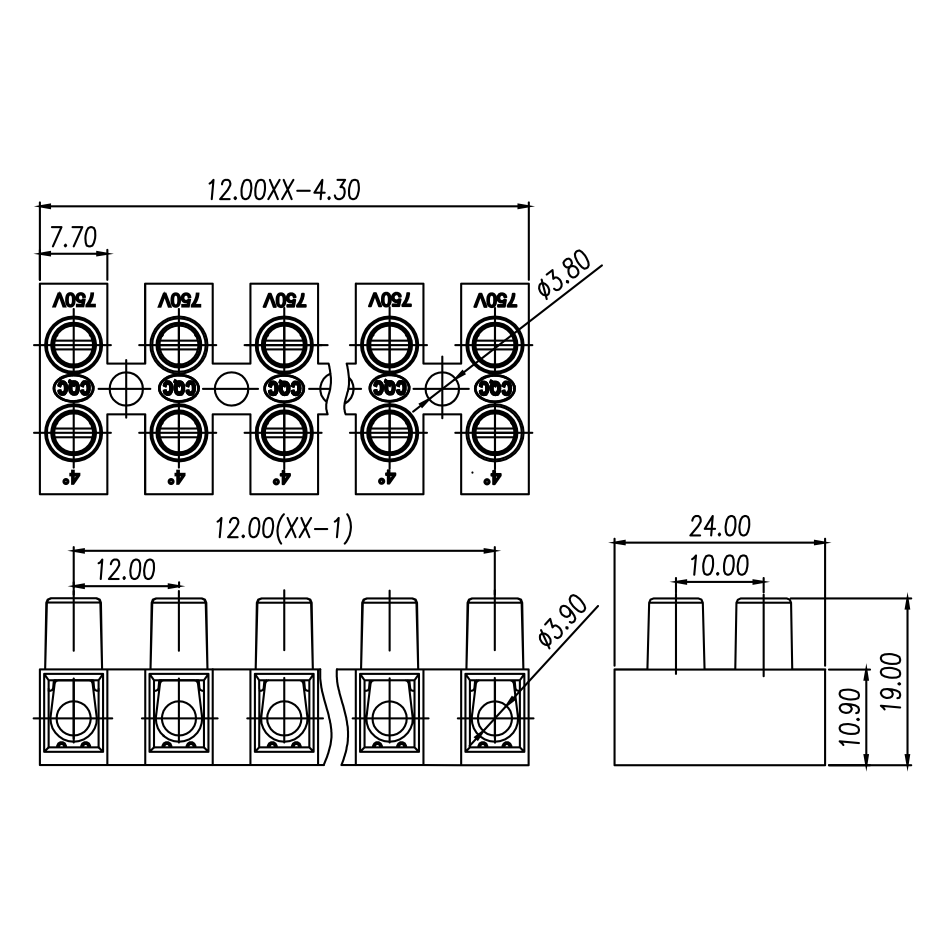

Dimensions
