AC241V-5.00

UL/CUL

Use Group B C D
Rated Voltage 300 V - 300 V
Rated Current 20 A - 10 A
Wire Range 24 ~ 12 AWG
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 250 V 400 V 630 V
Rated Current 24 A 24 A 24 A
Impulse Withstand Voltage 4 KV 4 KV 4 KV
Conductor Cross Section (Solid) 0.2 ~ 4.0 mm²
Conductor Cross Section (Flexible) 0.2 ~ 2.5 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 5.00 mm / 1 ~ 30 poles
Stripping Length 9 ~ 10 mm
Screw / Torque -
Operating Temperature -40 ~ +105 ℃
Soldering Temperature 260℃ / 5S
Pin Dimensions 0.8 * 0.8 mm
PCB Hole Diameter ⌀1.3 mm

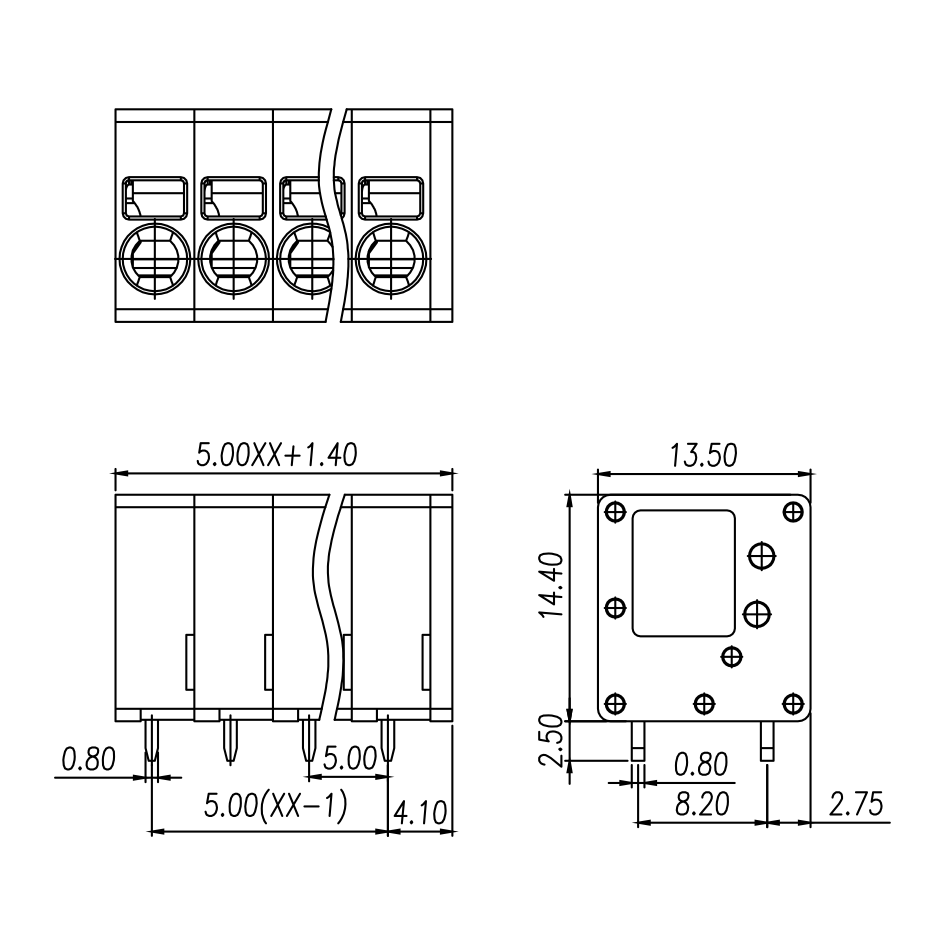

Dimensions

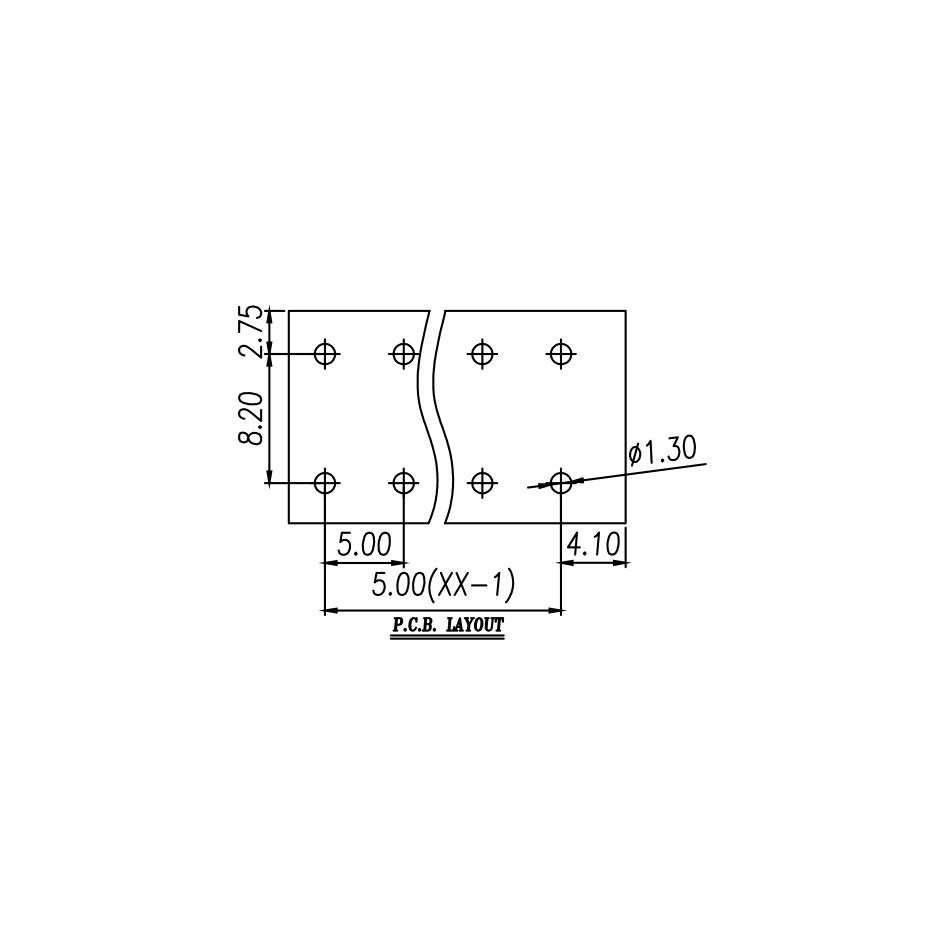

PCB Opening diagram
