2CDCVC-5.08

UL/CUL

Use Group B C D
Rated Voltage 300 V - 300 V
Rated Current 15 A - 10 A
Wire Range -
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 250 V 320 V 400 V
Rated Current 10 A 10 A 10 A
Impulse Withstand Voltage 4 KV 4 KV 4 KV
Conductor Cross Section (Solid) -
Conductor Cross Section (Flexible) -

Material

Insulation Material PBT
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 5.08 mm / 2 ~ 24 poles
Stripping Length -
Screw / Torque -
Operating Temperature -40 ~ +105 ℃
Soldering Temperature 260℃ / 5S
Pin Dimensions 1.0 * 1.0 mm
PCB Hole Diameter ⌀1.7 mm

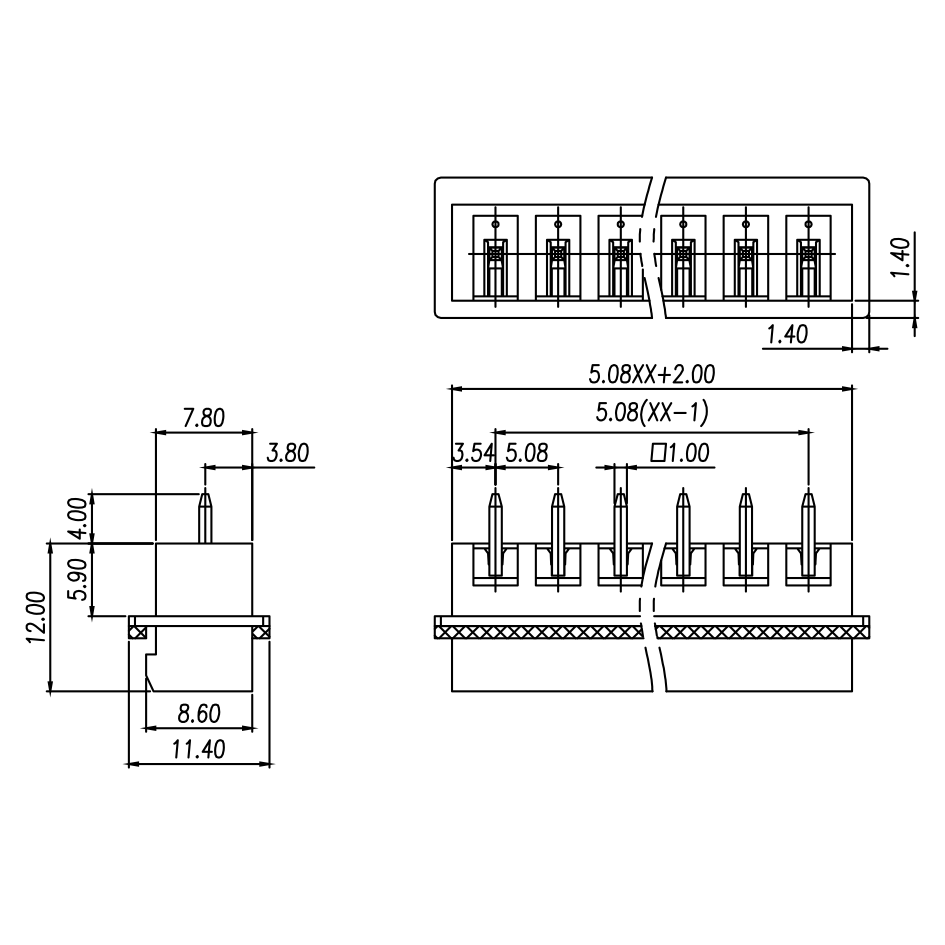

Dimensions

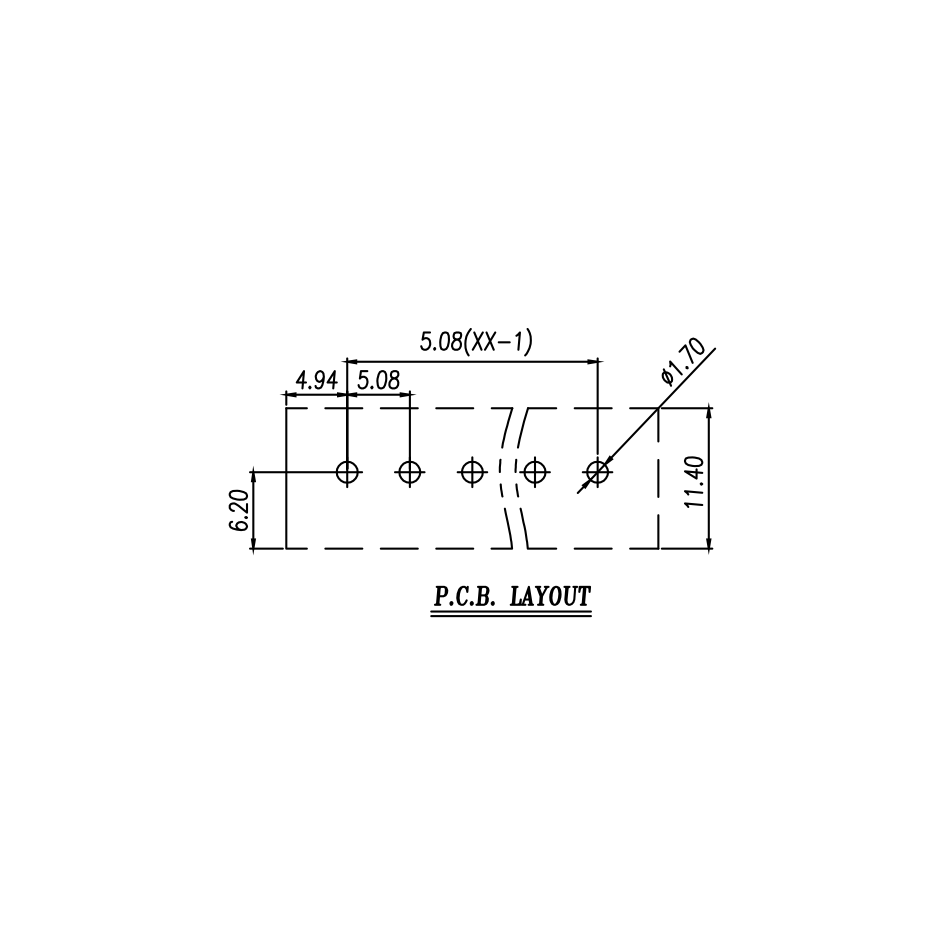

PCB Opening diagram
