2EDCURK-5.08

UL/CUL

Use Group B C D
Rated Voltage 300 V - 300 V
Rated Current 15 A - 10 A
Wire Range 28 ~ 12 AWG
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 250 V 320 V 630 V
Rated Current 12 A 12 A 12 A
Impulse Withstand Voltage 4 KV 4 KV 4 KV
Conductor Cross Section (Solid) 0.2 ~ 2.5 mm²
Conductor Cross Section (Flexible) 0.2 ~ 2.5 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 5.08 mm / 2 ~ 24 poles
Stripping Length 7 ~ 8 mm
Screw / Torque M3.0 / 0.5 N.m
Operating Temperature -40 ~ +105 ℃
Soldering Temperature -
Pin Dimensions -
PCB Hole Diameter -

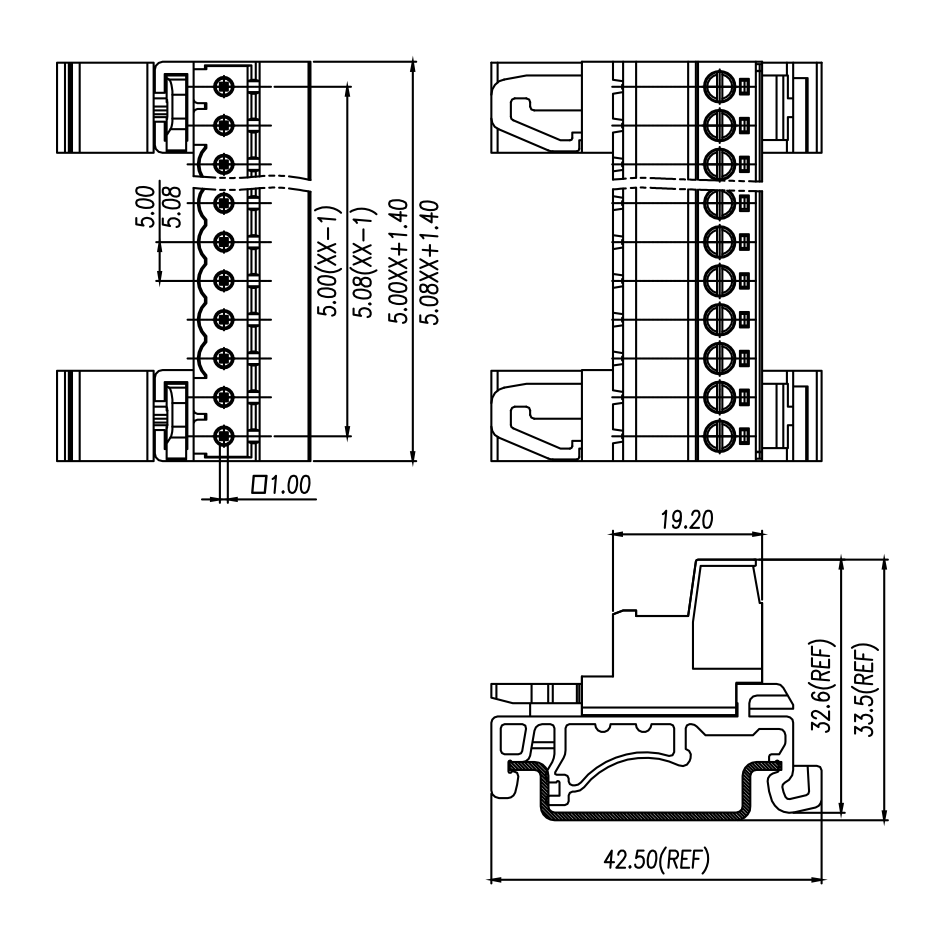

Dimensions
