2EDCVC-3.81

UL/CUL

Use Group B C D
Rated Voltage 300 V - 300 V
Rated Current 8 A - 8 A
Wire Range -
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 160 V 160 V 250 V
Rated Current 7 A 7 A 7 A
Impulse Withstand Voltage 2.5 KV 2.5 KV 2.5 KV
Conductor Cross Section (Solid) -
Conductor Cross Section (Flexible) -

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 3.81 mm / 2 ~ 24 poles
Stripping Length -
Screw / Torque -
Operating Temperature -40 ~ +105 ℃
Soldering Temperature 260℃ / 5S
Pin Dimensions 1.0 * 1.0 mm
PCB Hole Diameter ⌀1.7 mm

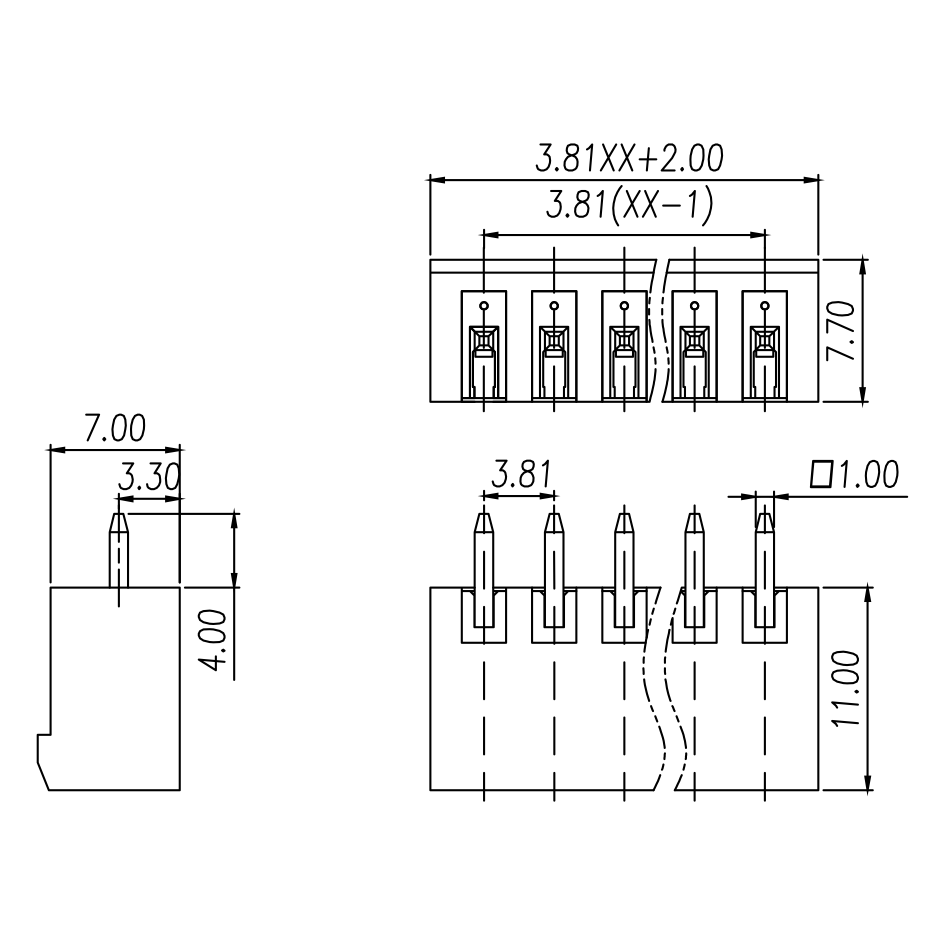

Dimensions

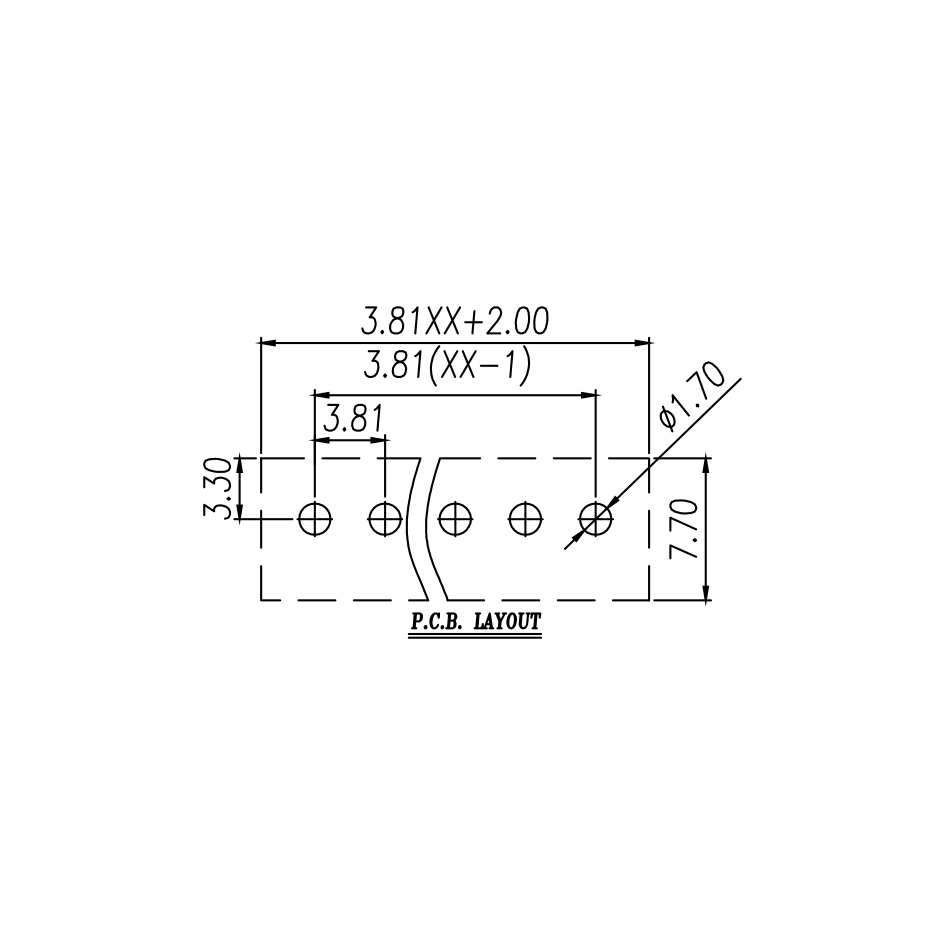

PCB Opening diagram
