AC150VA-7.50

UL/CUL

Use Group B C D
Rated Voltage 300 V - 300 V
Rated Current 20 A - 10 A
Wire Range 26 ~ 12 AWG
Dielectric Voltage-Withstand 1.6 KV

IEC

Overvoltage Category III III II
Contamination Class 3 2 2
Rated Voltage 450 V 630 V 1000 V
Rated Current 24 A 24 A 24 A
Impulse Withstand Voltage 6 KV 6 KV 6 KV
Conductor Cross Section (Solid) 0.5 ~ 2.5 mm²
Conductor Cross Section (Flexible) 0.5 ~ 2.5 mm²

Material

Insulation Material PA66
Flammability Rating UL94V-0
Conductor Material Copper alloy
Contact Surface Plating Sn plated

Other Data

Pitch / Poles 7.50 mm / 1 ~ 30 poles
Stripping Length 9 mm
Screw / Torque M2.5 / 0.4 N.m
Operating Temperature -40 ~ +105 ℃
Soldering Temperature 260℃ / 5S
Pin Dimensions 0.8 * 0.8 mm
PCB Hole Diameter ⌀1.4 mm

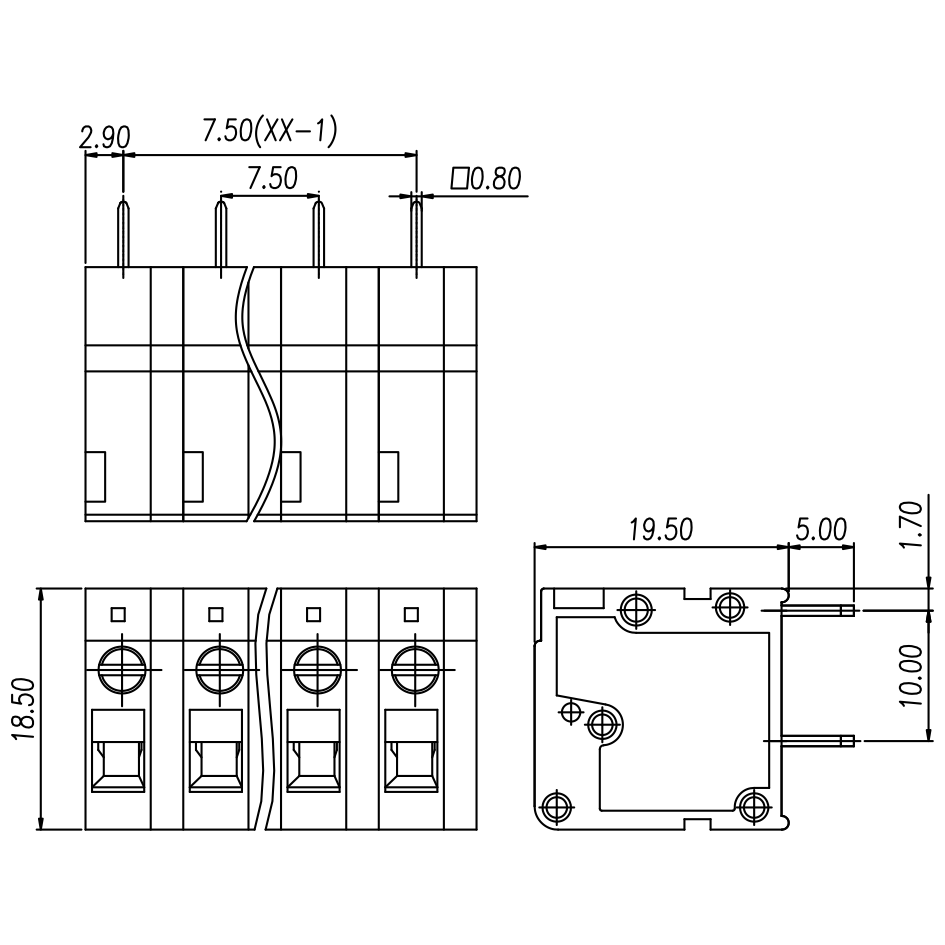

Dimensions

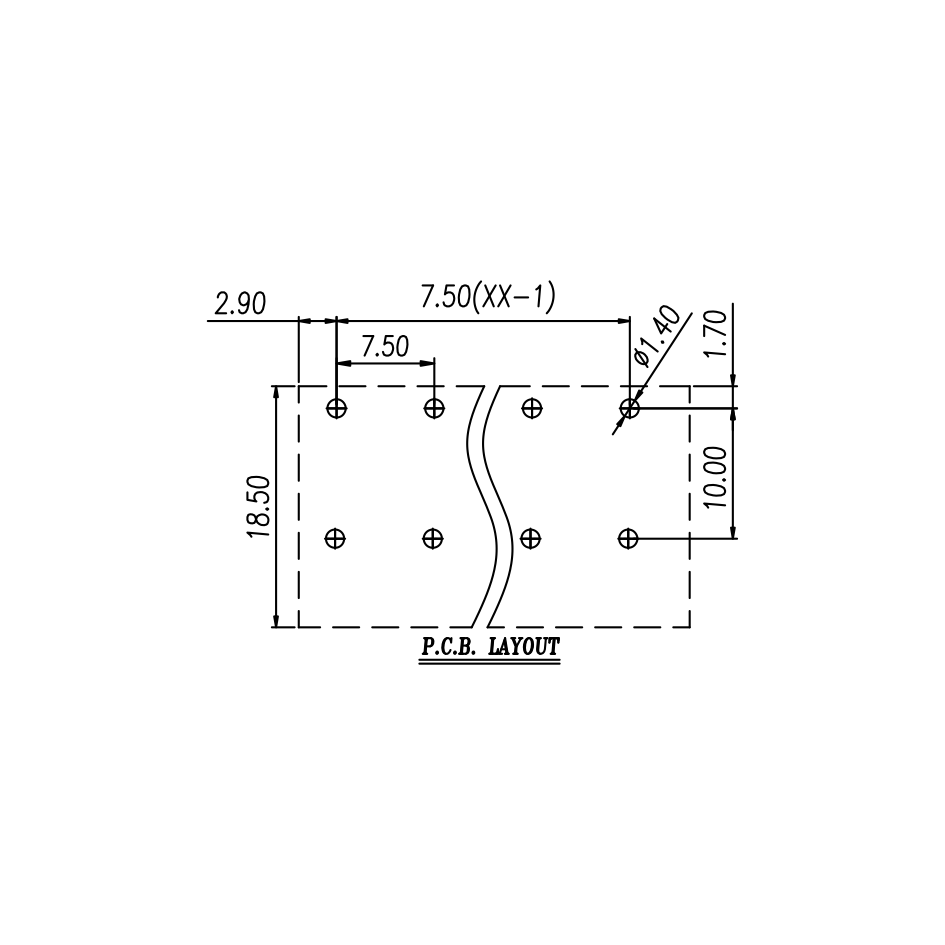

PCB Opening diagram
