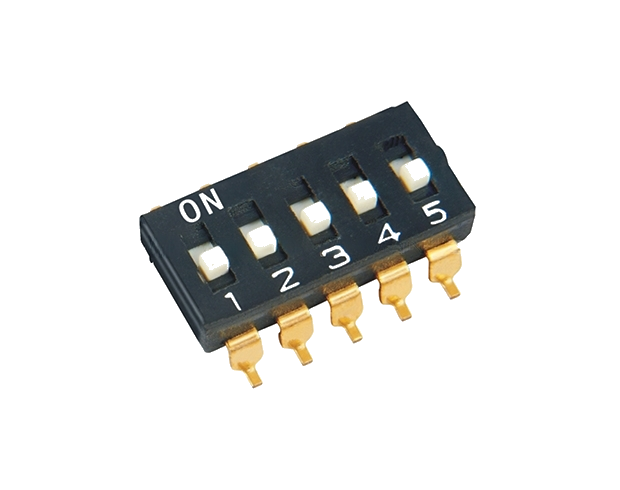

AC-4-5P-2.54
Electrical
| Switching | Non-Switching | |
| Rated Voltage | 24 V | 50 V |
| Rated Current | 25 mA | 100 mA |
| Initial | After Life Test | |
| Contact Resistance | 50 mΩ Max | 100 mΩ Max |
| Insulation resistance | 100MΩ / DC500V | |
| Withstanding voltage | AC300V / 1Min | |
Material & Mechanical
| Base | Thermoplastic, UL94V-0 | |
| Cover | Thermoplastic, UL94V-0 | |
| Button | Thermoplastic, UL94V-0 | |
| Terminal | Phosphor bronze, Gold plating | |
| Pitch | 2.54 mm | |
| Mechanical Life | 2000 cycles | |
| Operating Force | 1000 g Max | |
| Switch Travel | 2 mm | |
| Operating Temperature | -40 ~ +85 ℃ | |
| Storage Temperature | -40 ~ +85 ℃ | |

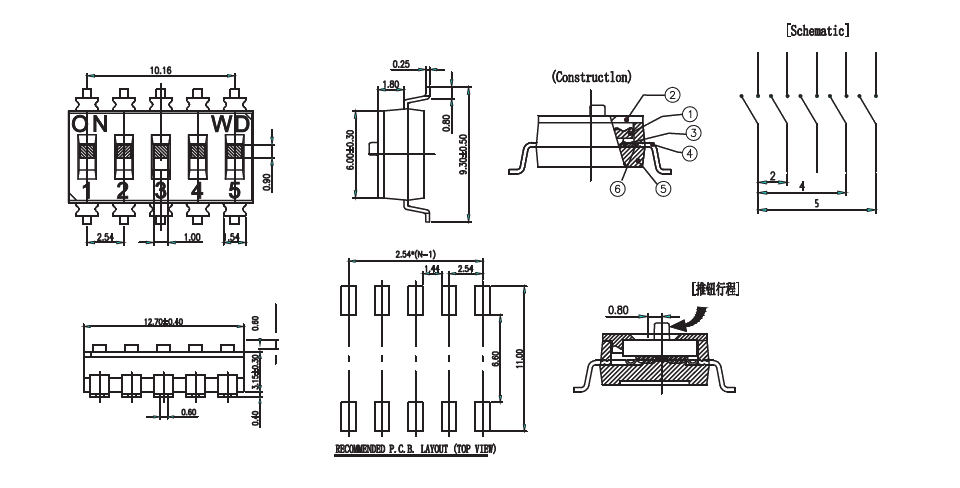

Dimensions
